Description
Specifications:
- Max. Number of input cards: 15
- Max. Number of input channels: 60
- Max. Number of output cards: 5
- Max. Loading Capacity: 65,000,000 Pixel
- Max. Number of layers: 80
Description

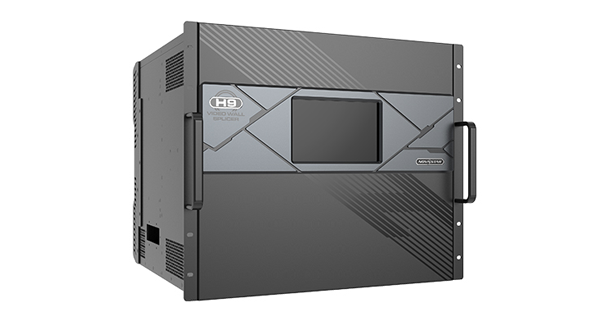

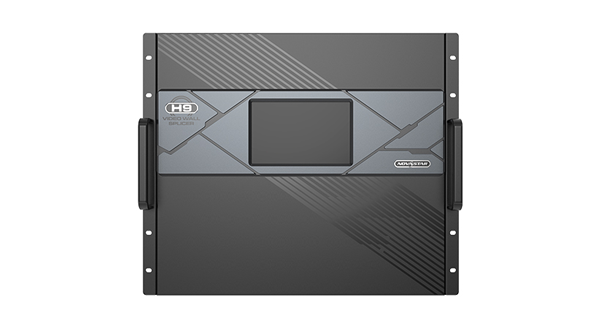

The H9 is part of NovaStar’s latest generation of video wall splicers, specifically designed for fine-pitch LED displays and featuring outstanding image quality. The H9 can operate as either a splicer, integrating both video processing and video control functions, or as a pure splicing processor. The entire unit is modular and pluggable, allowing flexible configuration as well as “hot-swapping” of input and output boards. Thanks to its excellent features and stable performance, the H9 can be used in a wide range of applications.

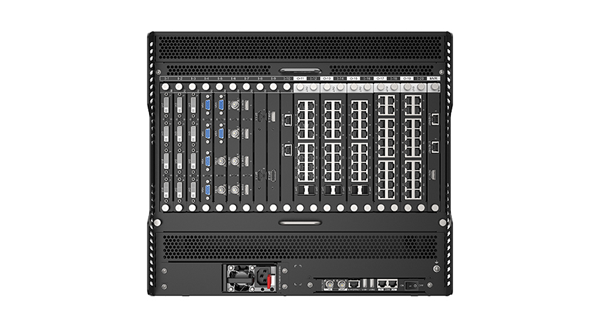

HARDWARE FEATURES
- Two different types of 4K Sending Cards available:
- H_20xRJ45: Manages up to 13 million pixels
- H_16xRJ45: Manages up to 10.4 million pixels (incl. 2x OPT-Out)
- Different configurations possible on one Sending Card:
- 4x 2K×1K@60Hz
- 2x 4K×1K@60Hz
- 1x 4K×2K@60Hz
- Online monitoring for all input & output cards
- “Hot-Swap” function for all in- & output cards
- IP input card H_2xRJ45 supports up to 100 IP cameras incl. input mosaic
- Automatic decryption of HDCP protected sources
- multi-screen management
- web control
Additional information
| Weight | 65 kg |
|---|---|
| Dimensions | 78 × 69 × 60 cm |
