Description

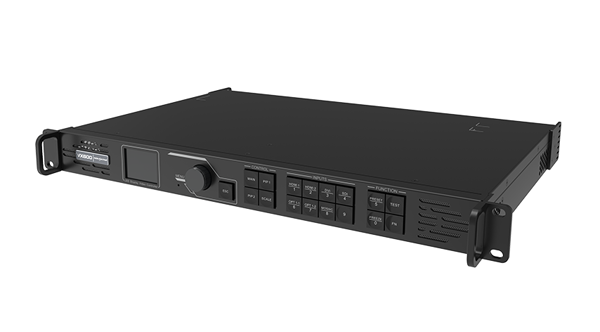

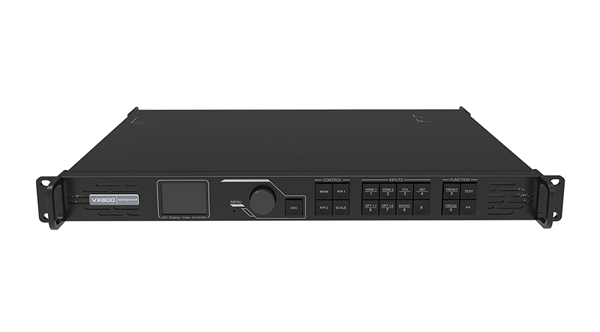

NovaStar’s VX600 stands as a comprehensive all-in-one controller, seamlessly integrating video processing and video control within a single device. With 6 Ethernet ports, it offers versatility through various working modes such as video controller, fiber converter, and bypass mode. Remarkably, a singular unit has the capability to oversee and manage up to 3.9 million pixels.
Description
HARDWARE FEATURES:
Inputs:
2x HDMI 1.3 (HDMI-In & Loop) (max. 1920×1200@60Hz), Custom EDID’s possible
1x DVI (1920×1200@60Hz, Custom EDID’s possible
1x 3G-SDI (max. 1920×1080@60Hz)
Outputs.
6x LED-Out (RJ45)
1x HDMI 1.3 Out (fixed resolution of 1920×1080@60Hz when the output is used as monitoring)
2x OPT-Out (10G)
further features:
V-Can Support
Genlock
Supports up to 3x layers
Memory for 10 presets
Cascading via USB possible
Display configuration without computer possible
Control via USB or LAN
Additional information
| Weight | 10 kg |
|---|---|
| Dimensions | 56 × 46 × 18 cm |
